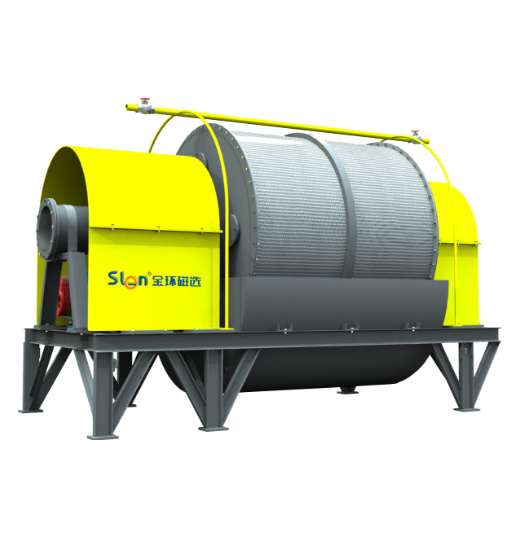

The slurry is fed into the circumference . The fine minerals pass through the screen and go to fine ore hopper.The coarse particles is lifted to the top then be washed into the slag collecting hopper and discharged by flushing water.
|
Parameters |
SY-0810 |
SY-1210 |
SY-1415 |
SY-2019 |
SY-2529 |
|
Cylinder(C*L) /mm |
Φ800×1000 |
Φ1200×1000 |
Φ1420×1500 |
Φ2000×1950 |
Φ2500×2950 |
|
Suitable size /mm |
0.5～5.0 |
0.5～5.0 |
0.5～5.0 |
0.5～5.0 |
0.5～5.0 |
|
Feed density /% |
≤50 |
≤50 |
≤50 |
≤50 |
≤50 |
|
Slurry throughput (t/h) |
10～15 |
30～45 |
50～80 |
100～150 |
150～280 |
|
Max ore volume (m3/h) |
50 |
100 |
200 |
400 |
750 |
|
Power / kW |
1.5 |
1.5 |
2.2 |
4.0 |
7.5 |
|
Water consumption (m3/h) |
1～2 |
3～5 |
5～10 |
10～20 |
18～35 |
|
Dimension(L*W*H) /mm |
2400×1300×1500 |
2980×1440×1730 |
4000×1600×2500 |
4750×2140×2780 |
6300×2900×3600 |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
